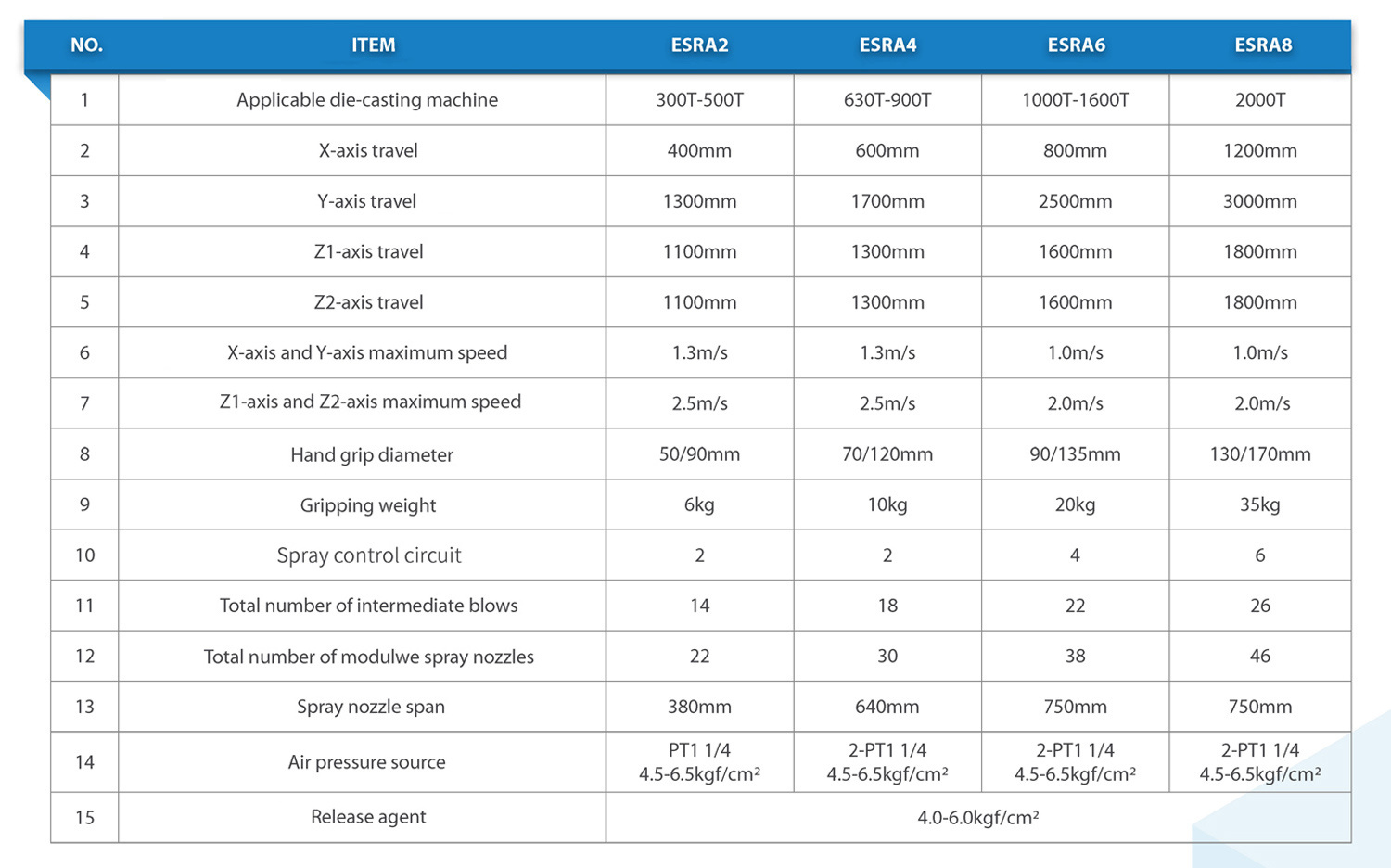

Catalog of esra pick-up and spray integrated machine

1.The machine uses a four-axis servo drive, has the maximum speed up to 2.5 meters per second, and is more efficient than the traditional models.

2.After the die is opened, the machine rapidly descends to pick up workpieces in the die and slowly put down workpieces outside the workpieces, having the action functions of rapid pic-up and gentle handling.

3.The machine uses SMC special pneumatic gripper with round structure and gripping handle not eccentric, solving the problems such as difficulty in clamping workpiece center. The increased thickness of gripping jaw improves durability and wear resistance.

4.The machine is equipped with a module spray nozzle, having good atomization effect and being easy to replace and install.

5.The machine adopts the optional traditional tube spray nozzle structure.

6.The machine has the functions of fixed-point spraying, circulating spraying and floating spraying.

7.The movable and fixed dies can be simultaneously blown or separately controlled. Spraying and blowing can be done simultaneously, or spraying can be followed by blowing. The machine has the function of upward blowing, blowing air to clean the die surface while the spray nozzle rises, so that the die surface can be kept clean.

8.The machine uses a handheld man-machine interface touch screen, integrates operation and setting into a whole, can freely edit the action program, adjust and set various parameters, and has the function of fault diagnosis and display, which is convenient for fault diagnosis and maintenance in the later stage.

9.The machine has the function of module storage. It is only necessary to enter the module number corresponding to the die, so that the parameter adjustment time is effectively saved.
